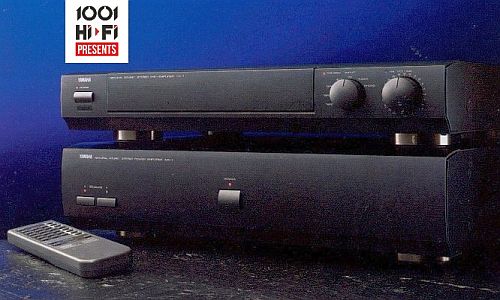

YAMAHA CX-1, MX-1 (1992) | Top-ART Series

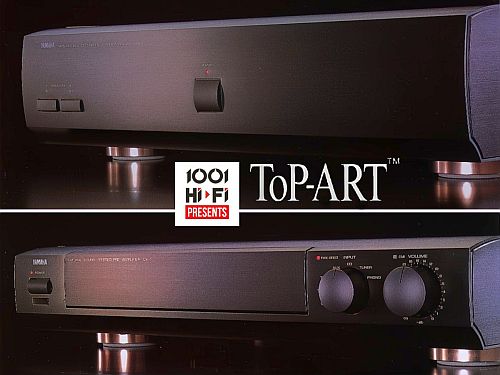

Top-ART Series - Total Purity Audio Reproduction Technology

CX-1

Preamplifier with 7 Inputs

Exceptionally Pure Sound Quality

Short and Direct Signal Paths

Pure Direct Switch with LED Indicator

Gold-Plated PCB Wiring

Quality Components and Extremely High-Quality Construction

Gold-Plated Brass RCA Jacks

High-Precision 4-Way Volume Control

Solid Aluminum Rotary Knobs

Sturdy Aluminum Front and Side Panels

Vibration- and Resonance-Resistant Cabinet

Exclusive 20 dB Amplifier with Pure Capacitive Feedback Circuitry

High-Precision Two-Stage Phono Preamplifier

Phono MM/MC Selector

Remote Motorized Input Selection and Volume Control with LED Indicator

Remote Mains Power On for MX-1/MX-2

Yamaha system remote control

MX-1

Stereo Power Amplifier

High performance and large power reserves ensure exceptional sound quality

Direct symmetrical arrangement for optimal signal purity

Two output relays for loss-free signal transmission

Elaborate gold-plated circuit board wiring

Quality components and extremely high-quality construction

Two powerful mains transformers

Low-noise high-performance transistors

Large filter capacitors (36,000 µF x 2 + 33,000 µF x 2)

Two solid aluminum heat sinks for efficient heat dissipation

Gold-plated brass RCA jacks

Logical circuit design for maximum channel separation and low distortion

Vibration- and resonance-resistant housing

Heavy and robust metal housing

Extra-large vibration-damping feet

Designed for high performance and optimal sound quality

Linear damping factor [350 (at 82, 20-20,000 Hz)]

Designed for high power and low distortion

High pulse power/stable operation even at low impedances [8/4/2 Ω: 280/460/630 W per channel]

HCA (Hyperbolic Conversion Amplification) circuit

APS power supply

2x200W (8ohm)

438x116x486mm

24 kg
